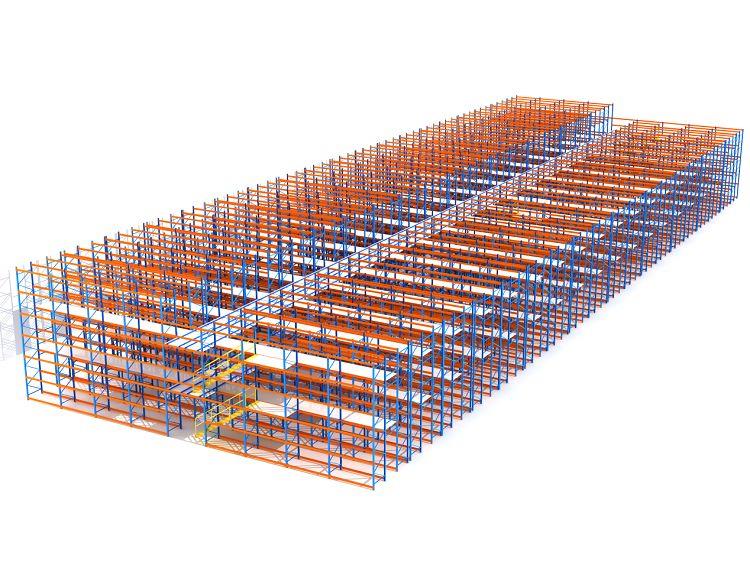

Multi Layer Racking Support Mezzanine

Multi Layer Racking Support Mezzanine

Mezzanines will allow you to utilize the maximum height of a warehouse and double or triple the surface area. Adding a Mezzanine can be the most economical way to increase warehouse space without the cost of a conventional building expansion.

Features

●Increase the height of storage and space utilization;

●Manual access for various cargos adaptively;

●Divided by 2-3 floors as usual which can carry 300-1000kg/㎡;

●The cargos on the first floor of mezzanine are heaviest and each beam can carry 500kg in common, combined with hand cart or manual hydraulic trolley. The cargos on the second and third floor are generally 300 kg for each beam and combined with hand cart;

●Transport machine: Lift platform, hoister, conveyor or forklift;

●Additional facilities in cargo passage: Foolproof, electric lighting, fireproofing or the others;

●Easy-installation: Professional installation instruction attached, and JT RACKING has professional installation team. p.s. If client need abroad installation guide, JT RACKING has professional expatriate PM, who can come for guiding according to client demand;

●Low cost and accesses the variety of cargos conveniently.

Details Introduction

●Framework sections consist of upright frames, beams, floors, laminates, stairs and wire meshes.

●Connection sections: All-bolted;

●Floor categories: Using cold rolled shape floor, such as glaze floors, riffled floor, grated floor and perforated floor; Connected to the beams by interlocking structure and overall nice.

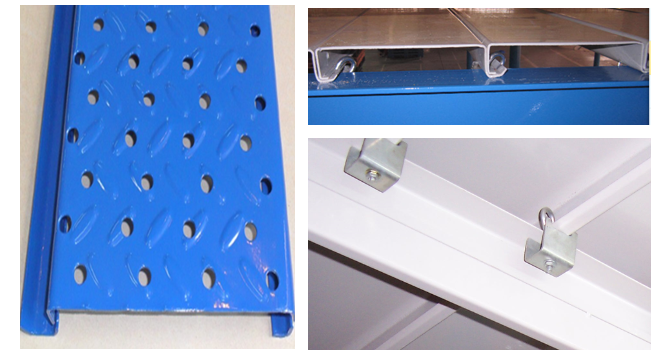

Interlock Powder Coated Steel Floor

Steel floors are the necessary part for the warehouse platform and mezzanine racking system. With the comprehensive engineering design and on site analysis and installation experience, JT RACKING developed its unique functional and practical steel floors with interlocking technology. Floors can be overlaid against one another which make the work very easy. Locking devices below the floors ensure the stability after the installation. The floors also can be punched with holes for fire extinguishing purposes.

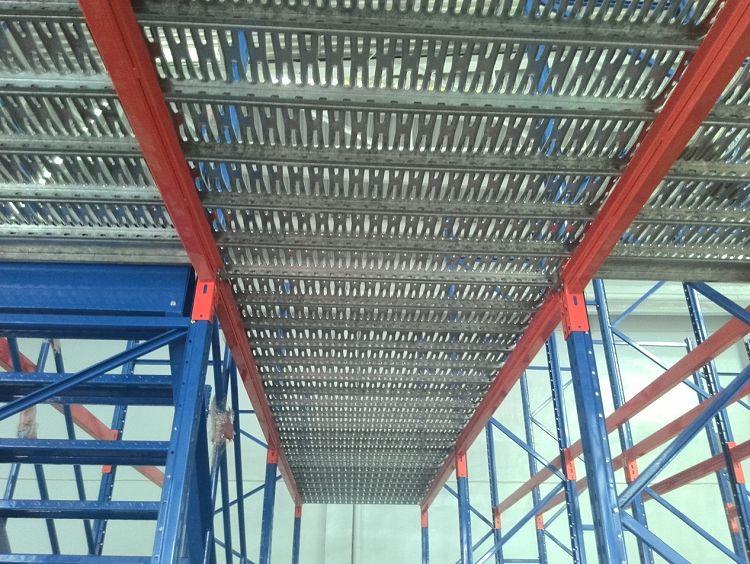

Galvanized Grating Floor

Multi-functional commercial warehouses, factories or construction buildings in most of the countries have clear fire extinguishing restrictions. Yet in some high-humidity parts of the world, rusty-proof metal material are commonly requested. JT RACKING perforated galvanized steel floors were developed to be adapted and applied in both scenarios. Meanwhile, such kind of floors are usually integrated in the mezzanine rack systems for their heavy loading capacity characteristics. Fully loaded pallets can also be laid on the upper floors for convenient unpacking purpose.

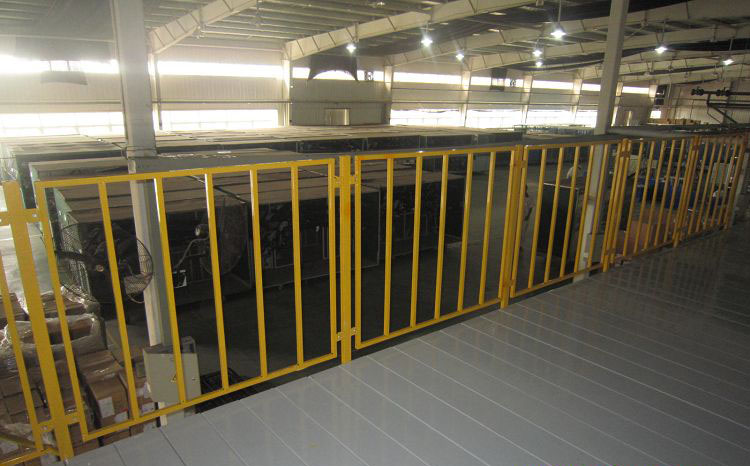

Guard Fence

For the open platform or upper floor aisles on the edges, guardrail or fencing side is the necessary part of the whole structure. For mezzanine system, the fencing system can be naturally integrated by upright frames with saddle beams and spacing struts, while for steel platform without the frame structure, these guardrails can be made by bar-steel grating. High-level doors on the fence also could be opened for goods accessing by up-lifting vehicles or machines.

Accessing Gate

High-end platform sometimes require goods delivery entrance and exit. Forklift is the most popular vehicle for goods accessing, but for safety concern, high-end labor workers should not lean close to the opening gates in case of falling down.  JT RACKING offers different accessing gates and doors for different vehicles and machines. The over-turn gate in the right image is one of the popular kinds for large platforms.

Fast-down Delivery

Mezzanine and platform is a solution for storage-space utility purpose, but for most of the time, goods that stored in the system are usually small-size packed, like carton or box. In this case, labor carrying of them would be the most common work for break-down accessing. Also for safety and convenience concerns, a sliding ramp or roller conveyer belt attached besides the structure would be easy for goods transferring from up levels to the ground without cost much on the electrical elevators.

Real Cases

The above is the analysis of storage shelf manufacturers, if you have any questions and needs, you can contact us! We will provide you with satisfactory warehouse and storage solutions.
