Industrial Racking Systems

Product Description

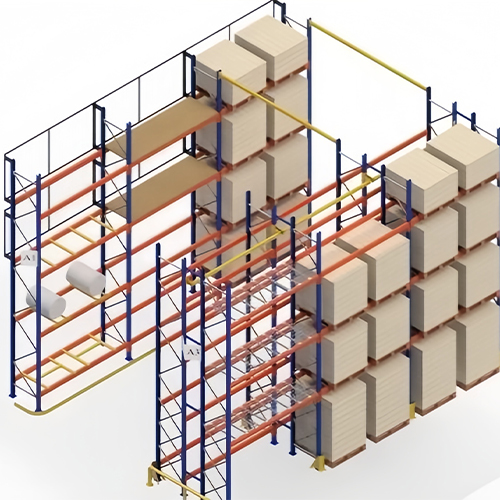

Industrial Racking Systems can offer your warehousing teams with unrestricted access to all your pallets at all times. This system delivers great versatility and assembly as single- or double-depth racks. Its surface is well protected against corrosion and rust, able to withstand a long time of use. It can effectively improve the turnover rate and help fulfill the modern warehousing needs of low cost, low loss and high efficiency.

Industrial Racking Systems can easily adapt to your specific warehouse and storage requirements, due to its variety of widths, depths and heights. In fact, racking will fit into any space available and is suited to all kinds of pallets, like Euro, Chep, disposable or captive pallets, mesh boxes or bins. It also has sufficient load-bearing capacity, durability and high safety factor.

Advantages

●Bottom level pallets can be placed on the floor directly.

●Flexible storage.

●Through the addition of accessories to achieve a variety of types of goods storage, such as roller goods, coil, tires and so on.

●Easy installation and maintenance, easy to modify.

Main components

Frame

Frames are made up of two uprights with the corresponding horizontal and diagonal bracings, footplates and accessories. Uprights are slotted every 50 mm to fit beams to the frame. The pallets size determines a frame's depth. A 1,100mm frame is normally used for a 1,200 mm deep Euro pallet.

Upright

The different models, lengths and thicknesses of uprights mean they can be adapted to a wide range of load requirements.

H-bracing and D-bracing

Base plates

A wide range of different frame footplates are used depending on the load required and the upright model used. One or two anchor bolts fix them to the floor.

Beam

Beams are the horizontal, robust racking components where loads are deposited. They are joined to the uprights via connectors or connector, which fit into the slots on the upright. The hooks on these connector, in the connecting system designed by us, are joined to the main rack structure at both ends. This feature considerably increases load capacity and prevents deformations that typically occur when the connection between the main structure and the hooks or connector is not sturdy enough.

Interlock beam section

The longest beam can be 4.5m, and the max loading capacity can be 4000kg/per level，other specification please contact us for details.

Accessories

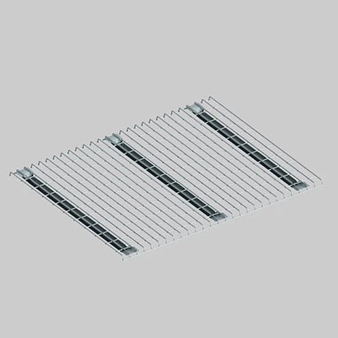

Wire mesh deck

Protector，guide rail and support bar

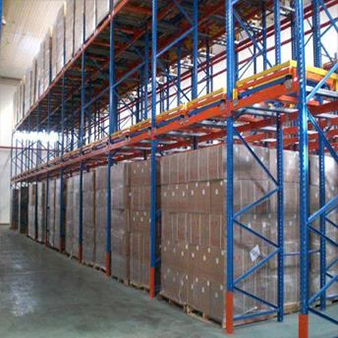

Project
