Heavy Duty Cantilever Racking System

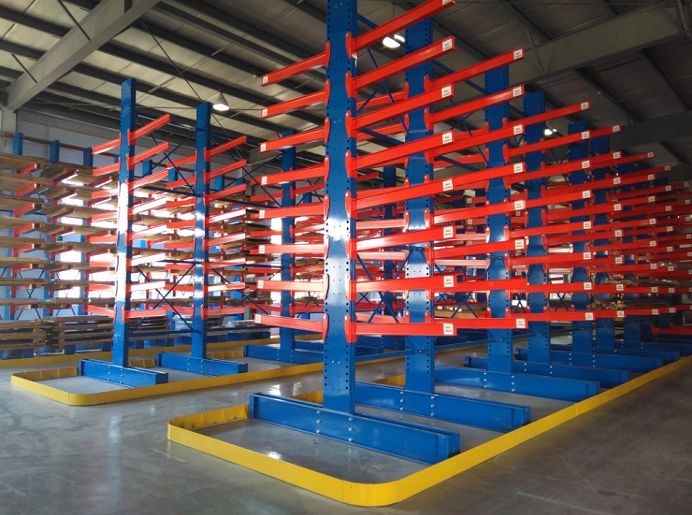

There are a variety of medium and heavy duty racking systems, and the cantilever racking is one of them.  Heavy Duty Cantilever Racking System is mainly suitable for long type goods or ring items and irregular size articles, such as wood, pipe, profile, cable and so on.  The cantilever racking is one of the ideal solutions for these heavy, unmanaged special items.

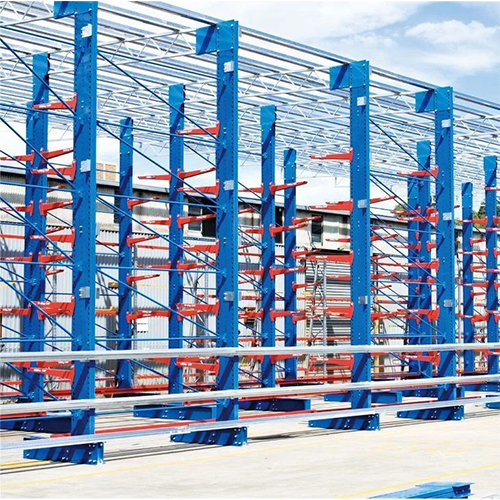

Heavy Duty Cantilever Racking System with the technical lateral forklift can solve the storage of long material and irregular shaped material. The highest column can reach 10 meters, cantilever arm length is 1.0 – 1.2m, and loading capacity can reach 1 ton. Heavy Duty Cantilever Racking System can be used in indoor and outdoor. It can be used hot dip galvanized to surface treatment of outdoor. It also can be installed ceiling at the top of the column, then can be resisted wind, rain and sunshine.

Features

●Wide range of load capacities suiting both standard and seismic applications

●Center column design creates unlimited horizontal space

●Fully customizable

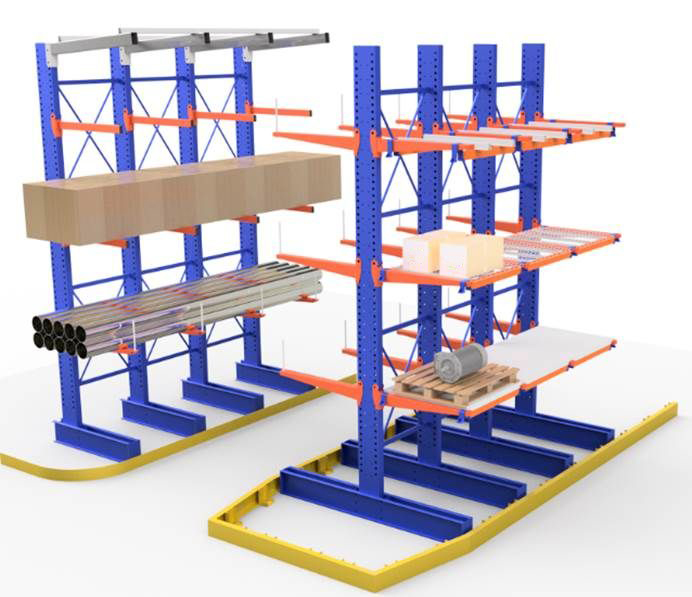

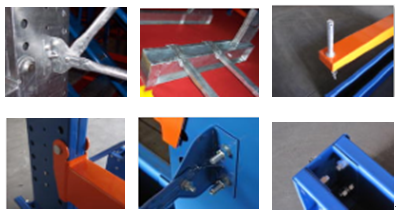

Cantilever Racking Components

Cantilever Arm

Cantilever arms are the heart of the rack system. JRACKING® offers variable arms compatible with C/C column. Arms can be adjusted easily up and down the column and are available in length with a variety of capacities from 220 ~ 1,500 kgs (100 ~ 3,300 lbs). The arm of a cantilever racking can be either a single side or a double side.

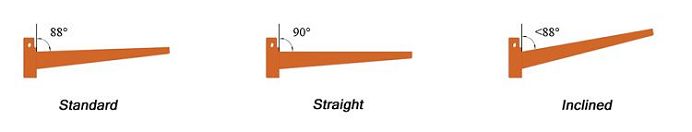

Arm can be welded to different positions on the connector according to customized load requirement. Straight, standard and inclined arms are available.

The goods of Heavy Duty Cantilever Racking System are usually accessed by a forklift or artificially. Heavy Duty Cantilever Racking System are mostly used in the machinery manufacturing industry, building materials supermarket, cable power, production factory, and various industrial warehouses.
